YD Thread Coupling Connector
Name: YD Thread Coupling Connector Content: Approved by American UL. Design standard ICE61984; test standard IEC60512. Degree of protection IP54 or IP65. Products conforming to CE, CCC and British LR certification, and passed the RoHS test by SGS.
Environment
Operating Temperature: Lower limit -55℃; Upper limit +125℃
Relative Humidity: 95% at 40±2℃
Frequency: 50Hz~60Hz
Vibration: 10~500Hz; Acceleration 100m/s2
Shock: Acceleration 250m/s2
Salty Spray Corrosion: >96 hours
Overvoltage Category: Ⅱ、Ⅲ
Degree of Pollution: 2,3
Mechanical Life: >500 Cycles
Material
Operating Temperature: Aluminium Alloy
Relative Humidity: Flame Resistance Plastic, UL94V-0
Contact: Copper Alloy
Insulation Resistance
Normal Temperature ≥5000MΩ
High Temperature ≥1000MΩ
Damp Heat ≥100MΩ
Contact Rated Current, Contact Resistance, Wire Gauge
|
Contact Diameter (mm)
|
Rated Current (A)
|
Contact Resistance (mΩ)
|
Wire Guage (mm2)
|
Wrap Length (mm)
|
|
Ф1.5
|
10
|
2.5
|
＜1.75
|
5-6
|
|
Ф2.5
|
25
|
1.0
|
＜4.9
|
6-7
|
|
Ф3.5
|
50
|
0.5
|
＜9.6
|
7-8
|
|
Ф5.5
|
100
|
0.3
|
＜23
|
7-8
|
TMS Thread Coupling Connector
Name: TMS Thread Coupling Connector
Content: Design according to Mil-DTL-5015H, qualified to NFF61-030
French Rail Car Norm relevent requests.
Design to MIL-DTL-5015H
Halogen free fire resistance thermoplastic material to UL94V-0
Operating Temperature: -55~+125 centigrade
Salty Spray Corrosion: >96 hours
Wrong coupling prevent
Protection Degree IP65,IP67

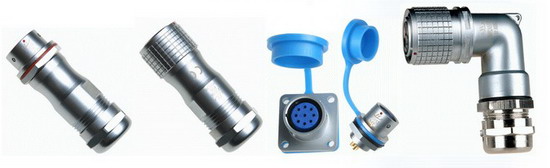

BMS Bayonet Coupling Connector
Name: BMS Bayonet Coupling Connector
Content: Design according to VG95234 and Mil-DTL-5015H, qualified to NFF61-030
French Rail Car Norm relevent requests. It can be directly changeable with other equivalent products.
Design to MIL-DTL-5015H
Halogen free & fire resistance thermoplastic material to UL94V-0
Operating Temperature: -55 ~+125 centigrade
Salty Spray Corrosion: >96 hours
Wrong coupling prevent
Protection Degree IP65,IP67
YDK Bayonet Coupling Connector
Name: YDK Bayonet Coupling Connector
Content: Design standard ICE61984; test standard IEC60512. Degree of protection IP54 or IP65. Products conforming to CE, CCC and British LR certification, and passed the RoHS test by SGS.
Environment
Operating Temperature: Lower limit -55℃; Upper limit +125℃
Relative Humidity: 95% at 40±2℃
Frequency: 50Hz~60Hz
Vibration: 10~500Hz; Acceleration 100m/s2
Shock: Acceleration 250m/s2
Salty Spray Corrosion: >96 hours
Overvoltage Category: Ⅱ、Ⅲ
Degree of Pollution: 2,3
Mechanical Life: >500 Cycles
Material
Operating Temperature: Aluminium Alloy
Relative Humidity: Flame Resistance Plastic, UL94V-0
Contact: Copper Alloy
Insulation Resistance
Normal Temperature ≥5000MΩ
High Temperature ≥1000MΩ
Damp Heat ≥100MΩ
Contact Rated Current, Contact Resistance, Wire Gauge
|
Contact Diameter (mm)
|
Rated Current (A)
|
Contact Resistance (mΩ)
|
Wire Guage (mm2)
|
Wrap Length (mm)
|
|
Ф1.5
|
10
|
2.5
|
＜1.75
|
5-6
|
|
Ф2.5
|
25
|
1.0
|
＜4.9
|
6-7
|
|
Ф3.5
|
50
|
0.5
|
＜9.6
|
7-8
|
|
Ф5.5
|
100
|
0.3
|
＜23
|
7-8
|
X Thread Coupling Connector
Name: X Thread Coupling Connector
Type: Miniature Thread Connector
Content: The product is designed to standard IEC/EN61984 and tested to IEC/EN60512. It is approved to certification of CE, China Compulsory Certificate and passed the RoHS test by SGS. It is applied to the circuits of various instruments and electrical controllers.
Operating Temperature:Lower limit -40 centigrade; Upper limit +100 centigrade
Relative humidity:95% at+40±2 centigrade
Frequency:50Hz~60Hz
Vibration:10~500Hz 100m/s2 acceleration
Shock:40~80 cycles/min 250m/s2 acceleration
Insulation Resistance: Normal =5000MO
Damp Heat =100MO
Insulating Material Flammability:UL94V-0
Degree of Pollution: 2
Mechanical Life: >500 Cycles
YDE Sevo Motor Connector
Name: YDE Sevo Motor Connector
Content: Design standard ICE61984; test standard IEC60512. Degree of protection IP54 or IP65. Products conforming to CE, CCC and British LR certification, and passed the RoHS test by SGS.
Environment
Operating Temperature: Lower limit -55℃; Upper limit +125℃
Relative Humidity: 95% at 40±2℃
Frequency: 50Hz~60Hz
Vibration: 10~500Hz; Acceleration 100m/s2
Shock: Acceleration 250m/s2
Salty Spray Corrosion: >96 hours
Overvoltage Category: Ⅱ、Ⅲ
Degree of Pollution: 2,3
Mechanical Life: >500 Cycles
Material
Operating Temperature: Aluminium Alloy
Relative Humidity: Flame Resistance Plastic, UL94V-0
Contact: Copper Alloy
Insulation Resistance
Normal Temperature ≥5000MΩ
High Temperature ≥1000MΩ
Damp Heat ≥100MΩ
Contact Rated Current, Contact Resistance, Wire Gauge
|
Contact Diameter (mm)
|
Rated Current (A)
|
Contact Resistance (mΩ)
|
Wire Guage (mm2)
|
Wrap Length (mm)
|
|
Ф1.5
|
10
|
2.5
|
＜1.75
|
5-6
|
|
Ф2.5
|
25
|
1.0
|
＜4.9
|
6-7
|
|
Ф3.5
|
50
|
0.5
|
＜9.6
|
7-8
|
|
Ф5.5
|
100
|
0.3
|
＜23
|
7-8
|
